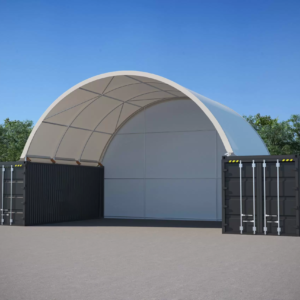

60 X 40ft DOUBLE TRUSS DOME (18 X 12M)

Introducing the 60 x 40ft Double Truss Dome (18 x 12M): The Ultimate Solution for Versatile Shelter Needs

The 60 x 40ft Double Truss Dome is designed to enhance your workspace with ample storage and protection from the elements. Whether you need additional space for vehicles, equipment, or team activities, this dome shelter meets all your requirements.

Benefits of the Container Dome:

• Increase Storage Options: Expand your storage capabilities effortlessly, accommodating tools, materials, and equipment.
• Well-Covered Workspace: Create a ventilated and secure environment for your team, promoting productivity and comfort.
• Enhanced Vehicle Storage: Increase your vehicle storage capacity, ensuring easy access and safety.

Why Choose Dome Container Shelters?

• Quick and Easy Installation: Set up your shelter rapidly, minimizing downtime and allowing you to focus on your operations.
• Superior Temperature Control: Dome shelters are cooler than traditional steel structures and flat-roofed options, enhancing comfort.
• Durable in All Weather Conditions: Built to withstand various weather challenges, ensuring long-lasting performance.
• Spacious Design: The igloo or dome shape provides ample interior space to accommodate diverse needs.

Specifications:

• Shelter Dimensions:
  • Length: 12m
  • Width: 18m
  • Height: 9.0m (based on high-top container)
• Back and Front Openings:
  • Width: 13.4m
  • Height: 4m
• Frame:
  • Constructed from hot-galvanized steel tube with a double truss design, bolted together for enhanced strength and durability.
• Fabric:
  • Made from 900 GSM 3-Ply PVC commercial fabric that is waterproof, UV resistant, and fire-resistant.
• Packing Case Size:
  • Dimensions: 3.3m (L) x 1.1m (W) x 1.5m (H)
  • Weight: 2000 kg

Installation Instructions:

1. Welding Requirements: Weld the brackets at each cross-section for this model size.
2. Site Preparation: Measure and position your containers correctly to align with the shelter’s span.
3. Base Plate Installation: Weld base plates into place on your shipping containers.
4. Arch Assembly: Join sections of the arch on the ground to form the complete structure.
5. Final Assembly: Lift the assembled arches onto the pre-installed base plates and tension the shelter cover securely.

Warranty Information:

• Five-Year Warranty on the cover, ensuring durability and protection.
• Ten-Year Warranty on the structure, providing peace of mind for your investment.

Enhance your storage and workspace capabilities with the 60 x 40ft Double Truss Dome (18 x 12M), offering a reliable, spacious, and efficient shelter solution!
