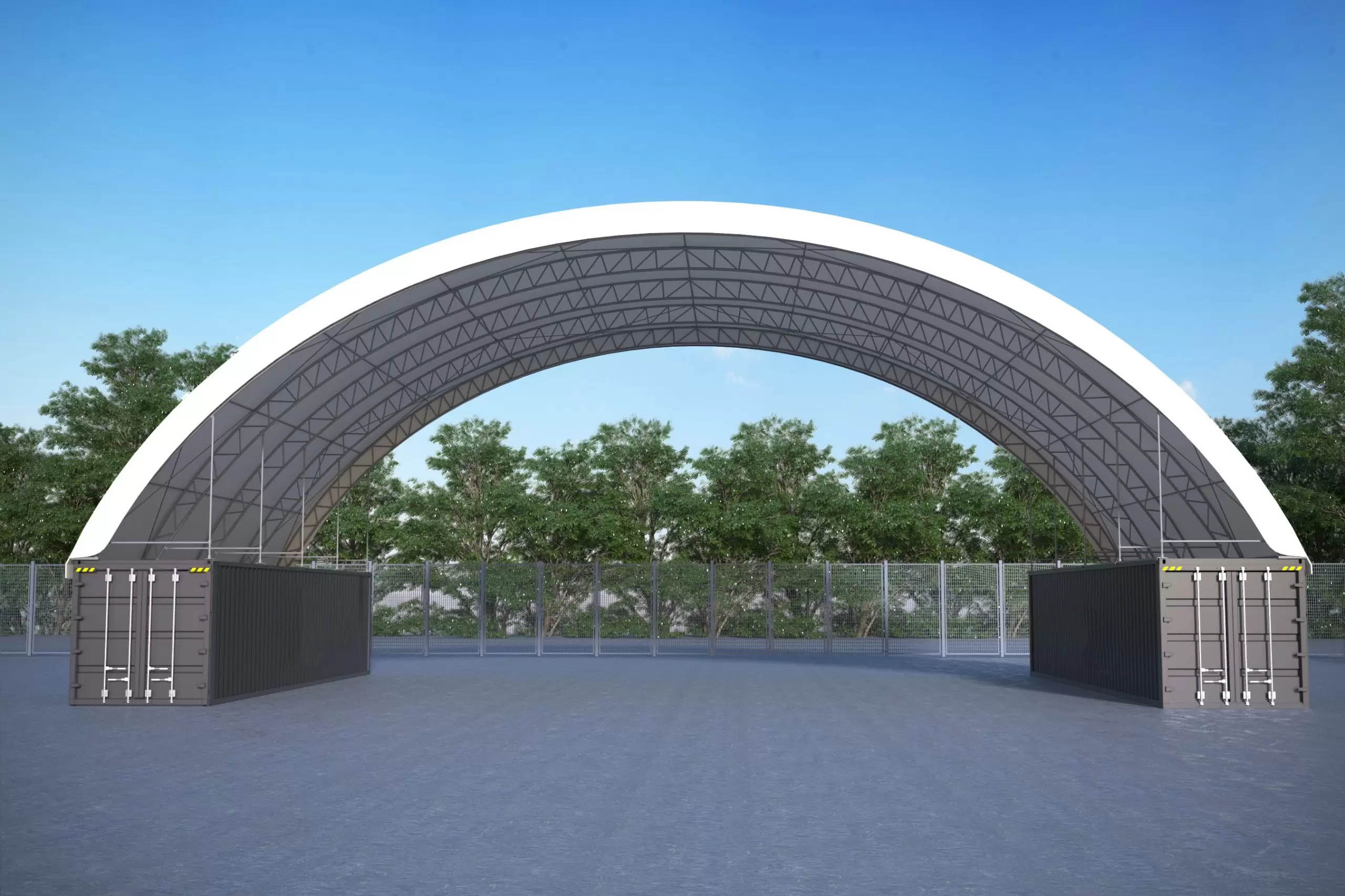

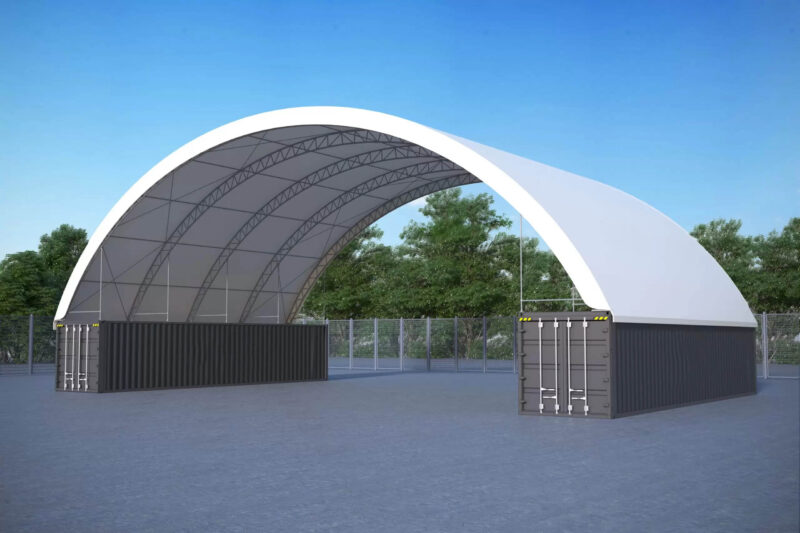

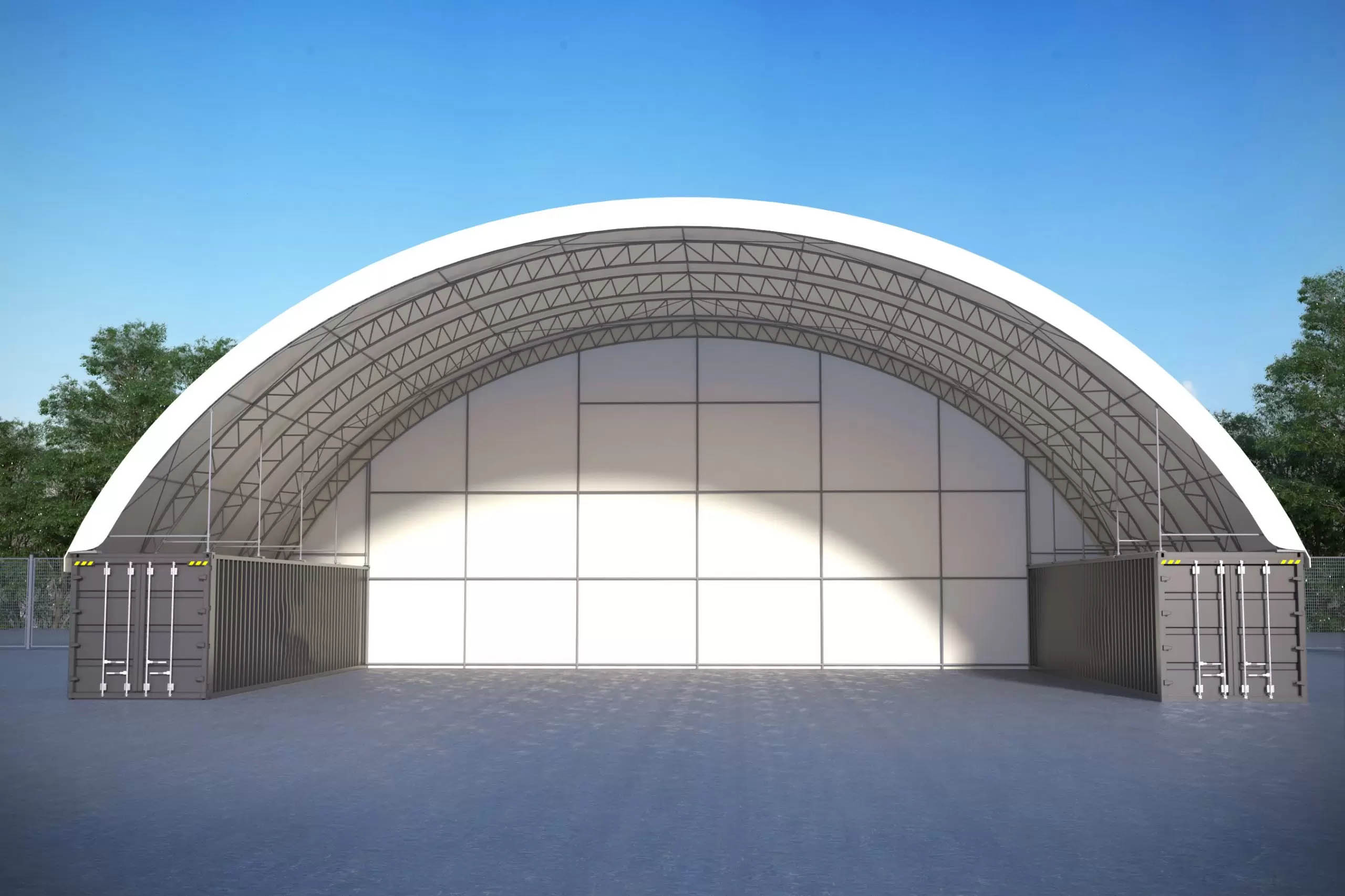

70 X 40ft Double Truss Dome (21 X 12M)

Discover the 70 x 40ft Double Truss Dome (21 x 12M): The Ultimate Shelter Solution for Your Storage Needs

The 70 x 40ft Double Truss Dome is a versatile and robust shelter designed to enhance your workspace, offering ample storage and protection from the elements. Whether you need additional space for vehicles or equipment, this dome is the ideal solution.

Benefits of the Dome Container:

• Maximize Storage Options: Increase your available storage space, making it easier to organize tools and materials.
• Enhanced Work Environment: Create a well-covered and ventilated workspace for your team, promoting productivity and comfort.
• Ample Vehicle Storage: Increase your vehicle storage capacity without compromising on accessibility and safety.

Why Choose Dome Container Shelters?

• Quick and Easy Installation: Set up your shelter in no time, allowing you to focus on your core operations.
• Superior Temperature Control: Dome shelters are cooler than traditional steel shelters and flat-roofed options, helping to maintain a comfortable environment.
• Durability in All Conditions: Built to withstand various weather conditions, ensuring long-lasting performance.
• Spacious Design: The igloo or dome shape provides ample interior space to accommodate a wide range of requirements.

Specifications:

• Shelter Dimensions:
  • Length: 12m
  • Width: 21.3m
  • Height: 9.0m (based on high-top container)
• Back and Front Openings:
  • Width: 16.5m
  • Height: 6.2m
• Frame:
  • Constructed from hot-galvanized steel tube with a double truss design, bolted together for enhanced strength and durability.
• Fabric:
  • Made from 900GSM 3-Ply PVC commercial fabric that is waterproof, UV resistant, and fire-resistant.
• Packing Case Size:
  • Dimensions: 3.3m (L) x 1.1m (W) x 1.5m (H)
  • Weight: 2000 kg

Installation Instructions:

1. Welding Requirements: Weld the brackets at each cross-section for this model size.
2. Site Preparation: Measure and position your containers correctly to match the shelter’s span.
3. Base Plate Installation: Weld base plates into place on your shipping containers.
4. Arch Assembly: Join sections of the arch on the ground to form the complete structure.
5. Final Assembly: Lift the assembled arches onto the pre-installed base plates and tension the shelter cover securely.

Warranty Information:

• Five-Year Warranty on the cover, ensuring durability and protection.
• Ten-Year Warranty on the structure, providing peace of mind for your investment.

Upgrade your storage capabilities with the 70 x 40ft Double Truss Dome (21 x 12M) and enjoy a reliable, spacious, and efficient shelter solution!
